CBB60型电容器系列

商品说明

产品特点Product characteristics

■　无感卷绕结构Non-inductance winding structure

■　自愈性能优异Excellent self-healing performance

■　等效串联电阻小Small equivalent series resistance

■　温升低Low temperature rise

■　性能稳定，可靠性高Stable performance, high reliability

■ 阻燃防火保护Flame retardant fire protection

典型应用Typical applications

■　主要适用于水泵、洗衣机、碎纸机等交流电动机的起动和运行。It is mainly suitable for starting and running AC motors such as water pump, washing machine and shredder。

结构Structure

■　金属化聚丙烯薄膜 Metallized polypropylene film

■　阻燃性工程塑料 V-0 Flame retardant engineering plastics V-0

■　阻燃性环氧树酯 V-0 Flame retardant epoxy resin V-0

■　引出：塑封电线，快速端子，护套线等 Lead: wire, fast terminal, sheath line, etc.

商品参数

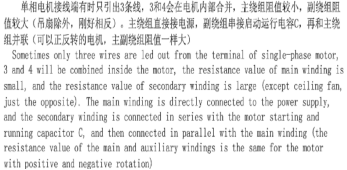

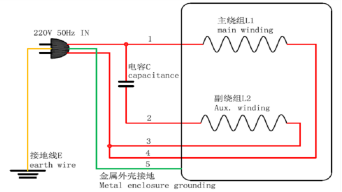

典型线路图Typical circuit diagram

外形示意图Schematic outline

技术性能参数Technical performance parameters

认证标志 Safety approvals	UL﹑TUV/VDE﹑CQC
执行标准 Quoted standard	GB/T3667.1、 UL810 、EN60252-1
工作方式 Type of working	连续运行 Continuous
寿命等级 Operating class	CLASS B - 10000 hours CLASS C - 3000 hours
最低/最高工作温度Operating Min. / MaxTemperature:	-25/70℃；-40/70℃；-40/85℃；-40/105℃
储存温度 Storage:	-40 / 70℃
额定电压 Rated Voltage U_N (a.c.):	250~500 Volt a.c.
额定频率 Rated Frequency f_N(Hz):	50Hz / 60Hz
电压上升速率 Voltage rise/fall time (max):	15 Volt / μs
最大允许电压 Maximum Permissible Voltage:	1.10 x Rated Voltage
最大允许电流 Maximum Permissible Current:	1.30 x Rated Current
损耗角正切值 Dissipation factor, tgδ:	20 x 10^-4 at 20°C, 50 Hz
安全防护等级 Class of safety protection:	S0(P0)
最大海拔高度 Maximum altitude:	2000 m
容量偏差 Capacitance Tolerance (standard)	± 5 %
安装 Mounting:	任何位置 Any position
外壳 Case	工程塑料如ABS、PBT，V0 (UL94 standard)
填充料 Filling Resin	环氧树酯 Self-extinguishing epoxy V0(UL94 standard)
电介质 Dielectric	聚丙烯薄膜Polypropylene film
镀层 Plates	自愈性金属镀层Self-healing metal layer
极间耐压测试 Voltage test terminal to terminal	2 x U_N for 5 s
极壳耐压测试 Voltage test terminal to case:	2200 Volt for 2 s
绝缘电阻 Insulation resistance (20℃)	极间 Between terminals≥2000MΩ .μF (500Vdc,60s)
安全距离 Leakage – Clearance in air between parts under voltage	≥ 5mm
气候类别测试 Vibration test	IEC 60068-2-6

典型规格specifications 单位：mm

Rated Cap.	250/300VAC		400/450VAC (C)			450VAC (B) /500VAC(C)
Rated Cap.	D	H	ΦD	H	ΦD		H
1.0μF	/	/	26	40	26		40
1.5μF	/	/	26	40	26		40
2.0μF	26	40	26	40	30		45
2.5μF	26	40	30	45	30		45
3.0μF	26	40	30	45	30		45
4.0μF	26	40	30	55	30		55
5.0μF	30	45	30	55	35		55
6.0μF	30	45	30	55	35		55
7.5μF	30	45	35	55	35		72
8.0μF	30	45	35	55	35		72
10.0μF	30	55	35	72	40		72
12.0μF	30	55	40	72	40		72
15.0μF	35	55	40	72	45		72
18.0μF	35	55	45	72	50		72
20.0μF	35	72	45	72	50		72
25.0μF	35	72	50	72	50		85
30.0μF	40	72	50	85	50		92
35.0μF	40	72	50	92	50		120
40.0μF	45	72	50	92	50		120
50.0μF	50	72	50	120	55		120
60.0μF	50	72	50	120	60		120
