佛山市顺德区科晟电子有限公司

■　主要适用于洗衣机、空调机、水泵、碎纸机等单相交流电动机的起动和运行，以及电力电子设备、UPS电源的交流滤波电路。It is mainly suitable for starting and running single-phase AC motors such as washing machine, air conditioner, water pump and shredder. And AC filter circuit for power electronic equipment and UPS power supply。

结构Structure

■　金属化聚丙烯薄膜 Metallized polypropylene film

■　金属铝壳 Metal aluminium case

■　油式填充料 Oil filling

■　引出：电线和快速端子，如250#单片或双片等 Lead: Wire & Fast terminals such as 250#

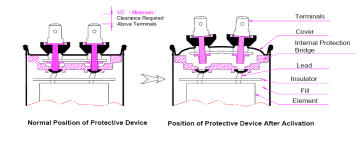

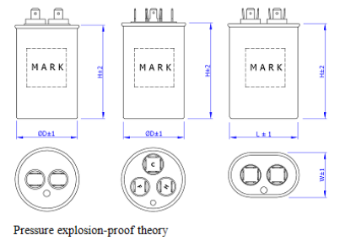

外形示意图Schematic outline

技术性能参数

认证标志 Safety approvals	UL﹑TUV/VDE﹑CQC
执行标准 Quoted standard	GB/T3667.1、 UL810 、EN60252-1
工作方式 Type of working	连续运行 Continuous
寿命等级 Operating class	CLASS B - 10000 hours CLASS C - 3000 hours
最低/最高工作温度Operating Min. / MaxTemperature:	-25/70℃；-40/70℃；-40/85℃；-40/105℃
储存温度 Storage:	-40 / 70℃
额定电压 Rated Voltage U_N (a.c.):	250~500 VAC
额定频率 Rated Frequency f_N(Hz):	50Hz / 60Hz
电压上升速率 Voltage rise/fall time (max):	15 V/μs
最大允许电压 Maximum Permissible Voltage:	1.10 x Rated Voltage
最大允许电流 Maximum Permissible Current:	1.30 x Rated Current
损耗角正切值 Dissipation factor, tgδ:	20 x 10^-4 at 20°C, 50 Hz
安全防护等级 Class of safety protection:	S2(P2)
最大海拔高度 Maximum altitude:	2000 m
容量偏差 Capacitance Tolerance (standard)	± 5 %
安装 Mounting:	任何位置 Any position
外壳 Case	铝 Al
填充料 Filling Resin	油 Oil
电介质 Dielectric	聚丙烯薄膜Polypropylene film
镀层 Plates	自愈性金属镀层Self-healing metal layer
极间耐压测试 Voltage test terminal to terminal	2 x U_N for 5 s
极壳耐压测试 Voltage test terminal to case:	2200 Volt for 2 s
绝缘电阻 Insulation resistance (20℃)	极间 Between terminals≥2000MΩ .μF (500Vdc,60s)
安全距离 Leakage – Clearance in air between parts under voltage	≥ 5mm
气候类别测试 Vibration test	IEC 60068-2-6

典型规格 specifications 单位：mm

Rated Cap. 电容量 (uF)	250/300VAC			400/450 VAC
	Cylindrial圆形		Oval椭圆形	Cylindrial圆形		Oval椭圆形
	ΦD	H	L×W×H	ΦD	H	L×W×H
3.0	40	55	51.5×31.5×55	40	60	51.5×31.5×55
3.0	45	55		45	55
3.3	40	55	51.5×31.5×55	40	60	51.5×31.5×55
3.3	45	55		45	55
3.5	40	55	51.5×31.5×55	40	60	51.5×31.5×55
3.5	45	55		45	55
3.75	40	55	51.5×31.5×55	40	60	51.5×31.5×55
3.75	45	55		45	55
4.0	40	55	51.5×31.5×55	40	60	51.5×31.5×55
4.0	45	55		45	55
4.2	40	55	51.5×31.5×55	40	60	51.5×31.5×55
4.2	45	55		45	55
4.5	40	55	51.5×31.5×55	40	60	51.5×31.5×55
4.5	45	55		45	55
4.7	40	55	51.5×31.5×55	40	60	51.5×31.5×55
4.7	45	55		45	55
5.0	40	55	51.5×31.5×55	40	60	51.5×31.5×55
5.0	45	55		45	55
5.5	40	55	51.5×31.5×55	40	60	51.5×31.5×55
5.5	45	55		45	55
6.0	40	55	51.5×31.5×55	40	60	51.5×31.5×55
6.0	45	55		45	55
6.3	40	55	51.5×31.5×55	40	60	51.5×31.5×55
6.3	45	55		45	55
6.5	40	55	51.5×31.5×55	40	60	51.5×31.5×55
6.5	45	55		45	55
6.8	40	55	51.5×31.5×55	40	60	51.5×31.5×55
6.8	45	55		45	55
7.0	40	55	51.5×31.5×55	40	60	51.5×31.5×55
7.0	45	55		45	55
7.5	40	55	51.5×31.5×55	40	60	51.5×31.5×55
7.5	45	55		45	55
8.0	40	55	51.5×31.5×55	40	60	51.5×31.5×65
8.0	45	55		45	55
8.2	40	55	51.5×31.5×55	40	60	51.5×31.5×65
8.2	45	55		45	55
8.5	40	55	51.5×31.5×55	40	70	51.5×31.5×65
8.5	45	55		45	65
9.0	40	55	51.5×31.5×55	40	70	51.5×31.5×65
9.0	45	55		45	65
9.5	40	55	51.5×31.5×55	40	65	51.5×31.5×65
9.5	45	55		45	65
10.0	40	65		40	70	51.5×31.5×65
10.0	45	55	51.5×31.5×65	45	65
11.0	40	65		40	70	51.5×31.5×65
11.0	45	55	51.5×31.5×65	45	65
12.0	45	55	51.5×31.5×65	45	65	51.5×31.5×65
12.0	40	65		40	75

Rated Cap. 电容量 (uF)	250/300VAC			400/450 VAC
	Cylindrial圆形		Oval椭圆形	Cylindrial圆形		Oval椭圆形
	ΦD	H	L×W×H	ΦD	H	L×W×H
12.5	45	55	51.5×31.5×65	45	65	51.5×31.5×75
12.5	40	65		40	75
13.0	45	55	51.5×31.5×65	45	65	51.5×31.5×75
13.0	40	65		40	75
14.0	45	55	51.5×31.5×65	45	65	51.5×31.5×75
14.0	40	65		40	80
14.5	45	55	51.5×31.5×65	45	65	51.5×31.5×75
14.5	40	65		40	75
15.0	45	55	51.5×31.5×65	45	75	51.5×31.5×75
15.0	40	65		50	65
16.0	45	55	51.5×31.5×65	45	75	51.5×31.5×75
16.0	40	65		50	70
17.0	45	55	51.5×31.5×65	45	75	51.5×31.5×75
17.0	40	65		50	70
18.0	45	55	51.5×31.5×75	45	75	51.5×31.5×75
18.0	40	65		50	70
20.0	45	55	51.5×31.5×75	45	85	51.5×31.5×75
20.0	50	55		50	70
22.0	45	55	51.5×31.5×75	50	80	51.5×31.5×85
22.0	50	55		45	85
25.0	45	55	51.5×31.5×75	50	85	51.5×31.5×85
25.0	50	55		45	95
30.0	45	55	71.5×45×65	50	90	51.5×31.5×85
30.0	50	65		50	100
32.0	45	55	71.5×45×65	50	90	71.5×45×75
32.0	50	65		50	100	51.5×31.5×100
35.0	50	65	71.5×45×75	50	100	71.5×45×85
35.0				50	90	51.5×31.5×100
40.0	50	75	71.5×45×75	55	100	71.5×45×100
40.0				50	100	51.5×31.5×115
45.0	50	75	71.5×45×85	55	100	71.5×45×100
45.0				50	110	51.5×31.5×125
50.0	50	75	71.5×45×85	50	125	71.5×45×100
50.0				55	105
55.0	45	100	71.5×45×100	55	125	——
55.0				50	130
60.0	45	100	71.5×45×100	55	130	——
				50	140
70.0	45	100	——	60	130	——
70.0				63.5	110
75.0	50	100	——	63.5	130	——
80.0	50	100	——	63.5	130	——
