佛山市顺德区科晟电子有限公司

■　主要适用于洗衣机、空调机、电风扇、排风扇、单相水泵马达专用起动等交流电动机的起动和运行。It is mainly suitable for starting and running AC motors such as washing machine, air conditioner, electric fan, exhaust fan, single phase pump motor.

结构Structure

■　金属化聚丙烯薄膜 Metallized polypropylene film

■　阻燃性工程塑料 V-0 Flame retardant engineering plastics V-0

■　阻燃性环氧树酯 V-0 Flame retardant epoxy resin V-0

■　引出：插针式(铜镀锡)，针径Φ0.8，Φ1.0等. Lead: Pin(Copper tin-plating)，etc.Φ0.8，Φ1.0

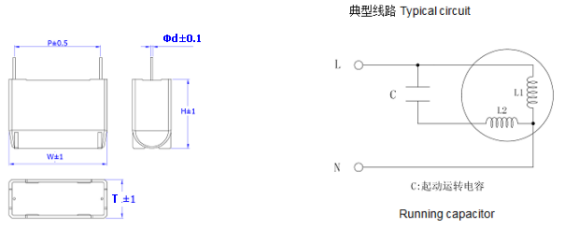

外形示意图和典型线路图Schematic and typical circuit diagrams

技术性能参数

认证标志 Safety approvals	UL﹑TUV/VDE﹑CQC
执行标准 Quoted standard	GB/T3667.1、 UL810 、EN60252-1
工作方式 Type of working	连续运行 Continuous
寿命等级 Operating class	CLASS B - 10000 hours CLASS C - 3000 hours
最低/最高工作温度Operating Min. / MaxTemperature:	-25/70℃；-40/70℃；-40/85℃；-40/105℃
储存温度 Storage:	-40 / 70℃
额定电压 Rated Voltage U_N (a.c.):	250~450 Volt a.c.
额定频率 Rated Frequency f_N(Hz):	50Hz / 60Hz
电压上升速率 Voltage rise/fall time (max):	15 Volt / μs
最大允许电压 Maximum Permissible Voltage:	1.10 x Rated Voltage
最大允许电流 Maximum Permissible Current:	1.30 x Rated Current
损耗角正切值 Dissipation factor, tgδ:	20 x 10^-4 at 20°C, 50 Hz
安全防护等级 Class of safety protection:	S3(P2)
最大海拔高度 Maximum altitude:	2000 m
容量偏差 Capacitance Tolerance (standard)	± 5 %
安装 Mounting:	任何位置 Any position
外壳 Case	工程塑料如ABS、PBT，V0 (UL94 standard)
填充料 Filling Resin	环氧树酯 Self-extinguishing epoxy V0(UL94 standard)
电介质 Dielectric	聚丙烯薄膜Polypropylene film
镀层 Plates	自愈性金属镀层Self-healing metal layer，隔离膜Segmented film
极间耐压测试 Voltage test terminal to terminal	2 x U_N for 5 s
极壳耐压测试 Voltage test terminal to case:	2200 Volt for 2 s
绝缘电阻 Insulation resistance (20℃)	极间 Between terminals≥2000MΩ .μF (500Vdc,60s)
安全距离 Leakage – Clearance in air between parts under voltage	≥ 5mm
气候类别测试 Vibration test	IEC 60068-2-6

典型规格specifications 单位：mm

Rated Cap.	250/300VAC				400/450VAC(C)				450VAC(B)
Rated Cap.	W	H	T	P	W	H	T	P	W	H	T	P
1.0μF	32	19	10	27.5	37	22	11	32	37	24	13.5	32
1.2μF	32	19	10	27.5	37	22	12	32	37	25	15	32
1.5μF	32	21	10	27.5	37	24	13.5	32	37	27	15	32
2.0μF	32	22	11	27.5	38	25	15	32	37	28	17	32
2.2μF	32	22	12	27.5	38	27	15	32	37	29	18.5	32
2.5μF	32	23	12.5	27.5	38	27	16	32	37	31	19.5	32
3.0μF	32	24	13.5	27.5	38	29	18.5	32	47	31	20	42
3.5μF	36	24	13.5	32	47	27	16	42	47	31	20	42
4.0μF	36	25	15	32	47	28	17	42	47	33.5	20.5	42
4.5μF	36	25	15	32	47	29	19	42	47	35	23	42
5.0μF	36	27	15	32	47	31	20.5	42	47	35	25	42
5.5μF	36	27	16	32	47	31	20.5	42	47	37	26	42
6.0μF	36	28	17	32	47	33	20.5	42	47	38	26	42
6.5μF	36	29	18.5	32	47	33	22	42	47	38	26	42
7.0μF	36	29	18.5	32	47	34	23	42	47	38	28	42
7.5μF	36	30	19	32	47	35	23	42	47	38	28	42
8.0μF	46	28	17	42	47	35	25	42	57	37	26	52
9.0μF	46	29	19	42	47	37	26	42	57	38	28	52
10.0μF	46	29	19	42	47	38	27	42	57	40	30	52
12.0μF	46	31	20.5	42	57	37	26	52	57	45	35	52
12.5μF	46	31	20.5	42	57	38	28	52	57	45	35	52
13.0μF	46	33	20.5	42	57	38	28	52	57	50	35	52
14.0μF	46	33	22	42	57	40	30	52	57	50	35	52
15.0μF	46	34	23	42	57	40	30	52	57	50	35	52
18.0μF	46	36	25	42	57	45	35	52	--	--	--
20.0μF	46	38	27	42	57	45	35	52	--	--	--
22.0μF	56	36	25	52	57	50	35	52	--	--	--
25.0μF	56	37	26	52	--	--	--		--	--	--
27.5μF	56	38	28	52	--	--	--		--	--	--
30.0μF	56	40	30	52	--	--	--		--	--	--
